Back Pressure Regulator

Description

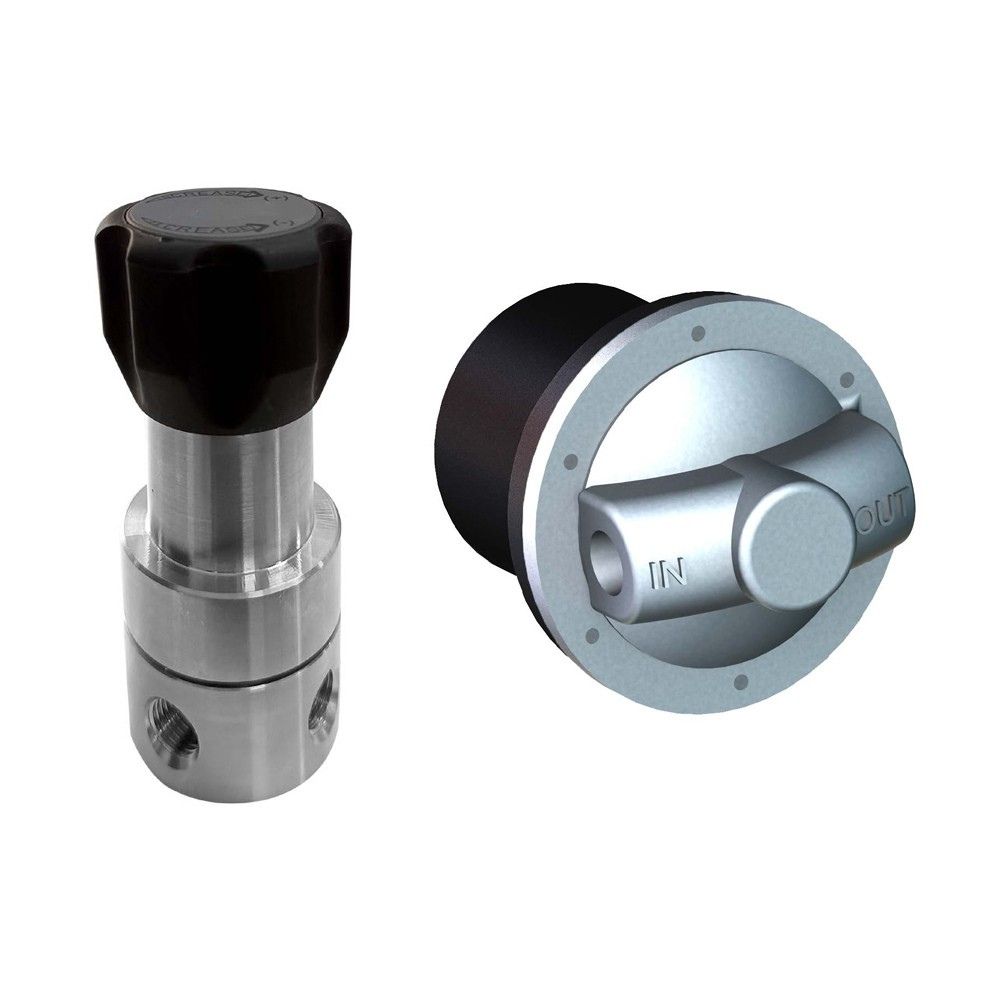

The Back Pressure Regulator maintains constant pressure and constant flow for the analyzer simultaneously protecting critical sampling components as a relief valve. A Back Pressure Regulator is a control valve that maintains a set pressure on the upstream side of the valve. If the pressure increases, the regulator opens to allow additional flow through the HIA-WCBR1 / HIA-WCBR22. As the pressure decreases the regulator passes closes to restrict flow. Continuous open outlet port for grab sample assures that fluctuation during opening and closing is avoided. This additional flow through the HIA-WCBR1 / HIA-WCBR22 will ensure the avoidance of the requirement of adjustment during the requirement of taking a grab sample as continuous flow is available for the same. A back pressure regulator can be also used for the grab sample purpose. This result in cost benefits avoiding separate tubing and grabbing sample prices.
This ensures that velocity is well maintained upstream. Any upstream fluctuation will not allow individual analyzer flows unstable and assures the stability of reading and assured performance of the system.

Advantage

• Precise pressure reduction and control when used in conjunction
  with the pressure element
• HIA-WCBR1 is specifically designed for steam/water sampling systems
  while HIA-WCBR2 is designed for Air/Gas/Water application
• Easy and compact mounting option
• Wetted parts suitable for challenging liquid sample
• Fail-safe relief valve

Features

• Efficiently ensures constant flow passes through the Analyzer
• Flow can be adjusted by adjusting the pressure element

Applications

• Oil and Gas,
• Chemical and Petrochemical Industries,
• Power Generation,
• Water and Wastewater
• Boiler
